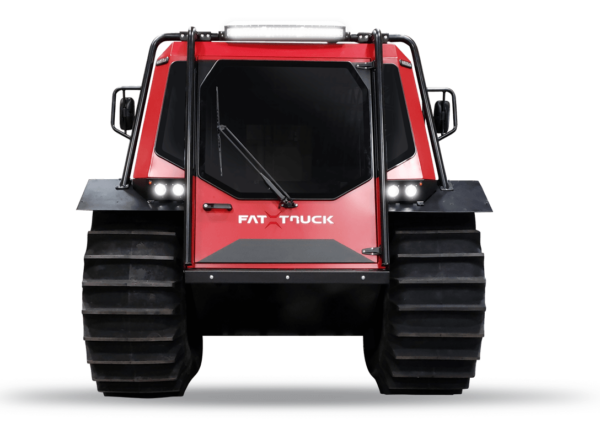

Fat Truck®
Fat Truck®
Destined to make its mark worldwide, the Fat Truck® is all about safety. Built in certified ROPS, automatic transmission, automatic brakes, comfortable cab temperatures, 360 degree visibility, Tier 4 final Caterpillar engine, 8 person seating. Canadian built and ready to tackle any terrain, anywhere!
-
ROPS CERTIFIED
-
CONTROLLED NOISE LEVEL
-
EPA COMPLIANT
-
DESIGNED AS PER OSHA, ASME, ANSI, ISO, SAE
-
MAXIMUM SPEED LIMITER
-
AUTOMATIC BRAKES WHEN THE VEHICLE IS NOT MOVING
-
VISIBILITY 360°
-
SIDE MIRRORS
-
AUTOMATIC TIRE INFLATION SYSTEM
-
FRONT AND REAR LADDERS WITH 3 POINTS CONTACT ALL THE TIME
-
GRAB HANDLES AT ALL ENTRY POINTS
-
3 POINTS SAFETY BELTS AT ALL SEATS
-
FLAT TIRE SAFETY KIT
-
STRETCHER FIT
EASE OF OPERATION
-
INTUITIVE PROPORTIONAL JOYSTICK DRIVE
-
INTUITIVE DASH DISPLAY
-
AUTOMATIC DRIVE MODES
-
AUTOMATIC TRANSMISSION
-
ABILITY TO DRIVE FROM THE LEFT OR THE RIGHT SIDE
COMFORT
-
BIGGEST CAB SPACE IN THE MARKET
-
ERGONOMIC SEATING AT ALL POSITIONS
-
4 SLIDING WINDOWS
-
HEATER DEFROSTER
-
AMPHIBIOUS
-
ALL TERRAINS
-
ALL SEASONS
-
ABILITY TO TRANSPORT UP TO 8 PEOPLE
-
ULTRA LOW GROUND PRESSURE
-
FUEL ECONOMY
-
TERRAIN MODES
-
CAT TIER 4 FINAL ENGINE (NO DPF)
-
DANFOSS TRANSMISSION
-
MAINTENANCE FREE DRIVETRAIN
Accessories: Personalize Your Fat Truck®
-
VEHICLE REMOTE CONTROL
-
WINCH
-
ADDITIONAL BATTERY
-
COLD WEATHER KIT
-
HITCH
-
TRAILER
-
FRONT AND REAR D-RINGS
-
CUSTOM COLOR
-
AIR CONDITIONING
-
BASIC BRUSH GUARD
-
ADDITIONAL BRUSH GUARD(S)
-
ROOF RACK WITH REAR LADDER
-
EXTERIOR MIRRORS
-
REAR SEATS
-
3 POINTS SEAT BELTS
-
FRONT AND REAR LIGHT BAR
-
BLUETOOTH RADIO WITH SPEAKERS
-
LED BEACON LIGHT
-
BACK UP CAMERA
-
BACK-UP ALARM
-
INCLINOMETER
-
ROOF HATCH

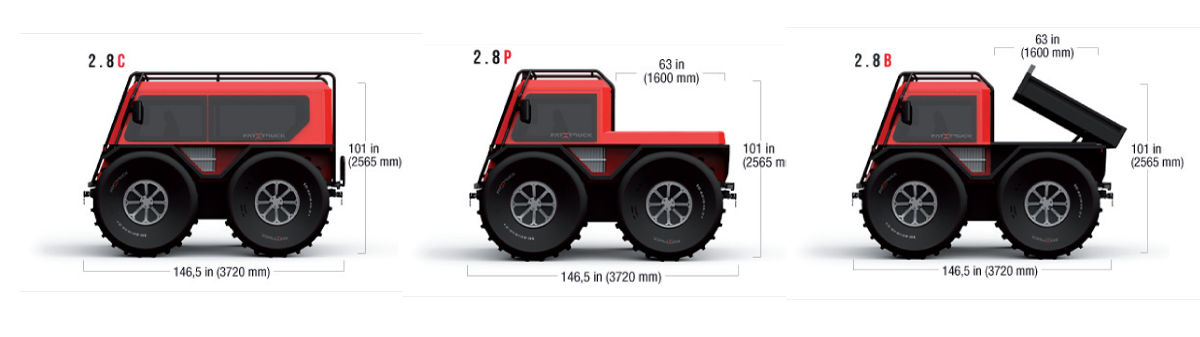

Fat Truck® Models
Specifications
Performance
Payload: 2200 lbs (1000 kg)
Passengers capacity: 8 (2 front+ 6 rear)
Maximum speed on land: 25 mph (40 km/h)
Maximum speed on water: 2 mph (3.2 km/h)
Maximum uphill & downhill: 35°/ 70%
Maximum sidehill: 22°/ 40%
Turning radius: 0°
Shipping weight: 4900 lb (2217 kg)
Ground pressure fully loaded: 1,6 lb/po² (0,11 kg/cm²)
Safety Features
ROPS: ISO 3471
EPA: TIER 4 Final
Noise level: <80 dba
Brakes: Automatic safety brake
Dimensions
Height: 101 in (2565 mm)
Length: 146,5 in (3720 mm)
Width: 101 in (2565 mm)
Ground clearance: 19,7 in (500 mm)
Controls
Controller: Microprocessor
Steering: Joystick
Display: Color display
Engine
Make: Caterpillar
Model: C2.2 Turbo diesel
Emission standards: Tier 4 final (no DPF)
Number of cylinders: 4 cylinders
Displacement: 135 po³ (2,22 L)
Horsepower @ 2800 RPM: 67 hp (50 kW)
Torque @ 1400 RPM: 153 lb-pi (208 N-m)
Cooling System: Liquid cooled
Electrical
Voltage: 12 V
Alternator capacity: 85 A
Battery capacity: 960 CCA
Battery type: AGM
Transmission
Type: Hydrostatic
Final drive: Carbon fiber synchronous belts
Brakes
Brakes: Positive deceleration through hydrostatic transmission
Park brakes: Brake disc applied pressure released
Tires
Front & Rear: FAT TRUCKtm LGP 1640 x 640 x 610
Pressure: 0,5 to 4 psi (0,035 to 0,28 kg/cm²)
Pressure control: Preset automatic pressure control
Fuel System
Capacity: 18,5 US Gal (70 L)
Average fuel autonomy: 10 h @ 50% of RPM
Warranty
Limited 1 year / 1000 hours
(Which ever comes first)
Options
Vehicle remote control
Winch
Additional battery
Cold weather Kit
Hitch
Trailer
Front and rear D-rings
Standard Eqipment
Doors: Lockable
Operator seats: 2 front seats with 3-points seat belts
Windows: Sliding side windows
Lights: Front, brakes, position, flashers, dome
Heating: Heater/Defroster
Horn: Electric
Ingress: Retractable ladders with grab handles
Standard color: Red
Fire extinguisher: 5 lbs. ABC
First aid kit
Lockable fuel cap
Front and rear bumpers
Operator & Maintenance manual
Spare Parts catalog (on USB flash drive)
Cab Options
Custom color
Air conditioning
Basic brush guard
Additional Brush guard(s)
Roof rack with rear ladder
Exterior mirrors
Rear seats with 2-points safety belts
3-points seat belts
Directional light with remote control
Front and rear light bar
Bluetooth radio with speakers
LED beacon light
Back up camera
Back-up alarm
Inclinometer
Roof hatch
